U-Type Screw Conveyor

Send Email Live Chat

Introduction

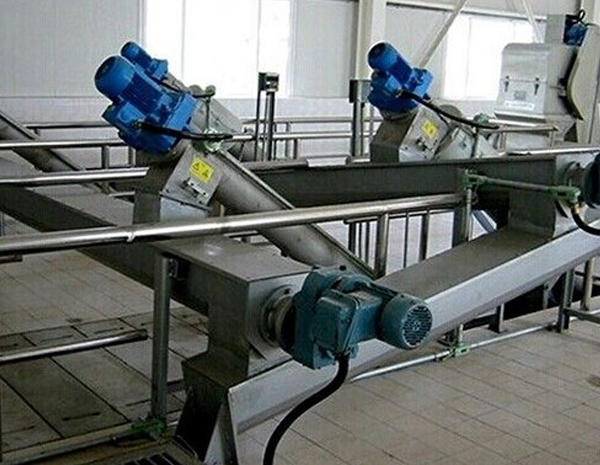

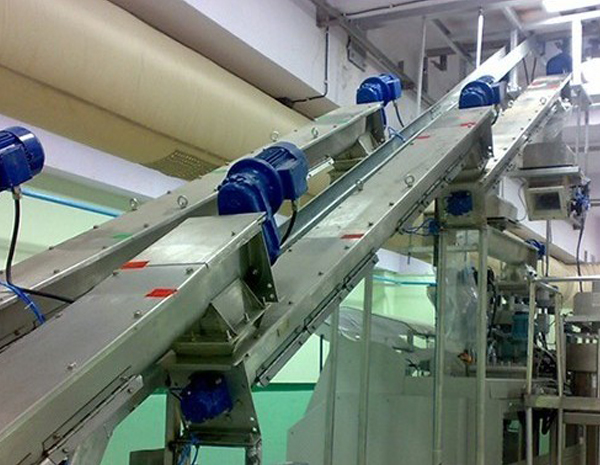

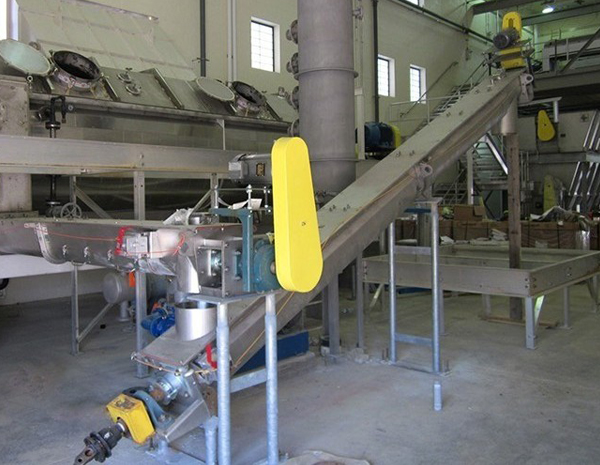

Trough Screw Conveyor is a continuous conveying equipment which used to transport powder, granular and dry bulk materials. It consists of bearing seat, screw blade, screw shaft, hang bearing, conveyor casing and driven device etc. U-type screw conveyor with trough type tube with multiple inlets and outlets, which also has inclination angle of maximum 20°. The rotation of the blade initiated by the motor, then material transferred along the spiral to the outlet.

Features

1.Whole sealing structure, without pollution.
2.Conveyor length can be customized.
3.Conveyor angle can be 0-30 degree.
4.Save space on the site.
5.Screw pitch can be customized.
6.Can be multiple inlets and outlets.
7.Adopts hanging bearing to connect screw blades.
8.Adopts the method of spot welding to weld spiral blade on the screw shaft.

LS screw conveyor specification & technical parameters
Type		LS160	LS200	LS250	LS315	LS400	LS500	LS630	LS800	LS1000	LS1250
Diameter/mm		160	200	250	315	400	500	630	800	1000	1250
Screw pitch/mm		160	200	250	315	355	400	450	500	560	630
technical parameters	n	112	100	90	80	71	63	50	40	32	25
	Q	8	14	24	34	64	100	145	208	300	388
	n	90	80	71	63	56	50	40	32	25	20
	Q	7	12	20	26	52	80	116	165	230	320
	n	71	63	56	50	45	40	32	25	20	16
	Q	6	10	16	21	41	64	94	130	180	260
	n	50	50	45	40	36	32	25	20	16	13
	Q	4	7	13	16	34	52	80	110	150	200
n---Rotation Speed (r/min), Allowable Deviation < 10% Q---Capacity (m3/h), Filling Factor = 0.33
